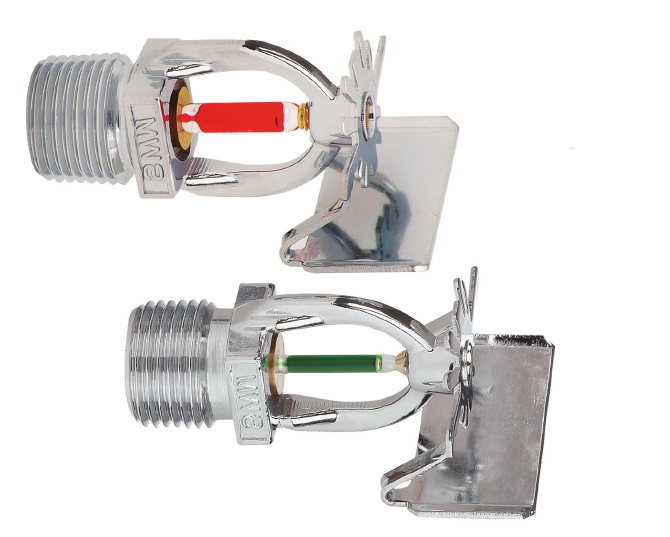

| GLASS BULB TYPE SPRINGKLER HEAD (SIDE WALL TYPE) |
|
|
|
■ SIDE WALL TYPE
The pendent type of sprinkler is that with sealing the thermal expansion fluid (glycerin or ether mixture) in the special glass, and when the temperature of the glass bulb rises due to heat, the glass bulb expands and fire water is released.
■ Specification
|
Model No. |
SWH-1 |
SWH-2 |
|
Working
Temperature |
68˚C |
93˚C |
|
Maximum Ambient
Temperature |
39˚C |
56˚C |
|
Temperature
Indication Color |
Red |
Green |
|
Response Time
Index |
Quick Response Type / Standard Type |
|
Spray Form |
Horizontal Side Wall Type |
|
Connection Screw
Size |
PT1/2" (15A) |
|
Orifice Diameter |
Ø11.2 |
|
Flow Rate |
80
LMP (1kg/㎠ - 1min) |
|
Test Pressure |
2.5Mpa |
|
Material |
Forged Brass |
|
Finishing |
Ni-Cr plate |
■ Indicating Items
|
Frame |
SWM |
|
Deflector |
Manufacturing year, SIDE WALL,
Operating temperature, SWM |
|
Glass Bulb |
DI 973K |
■ Assembly Drawing
■ Installation Drawing
|
|
|
|
|
;)
